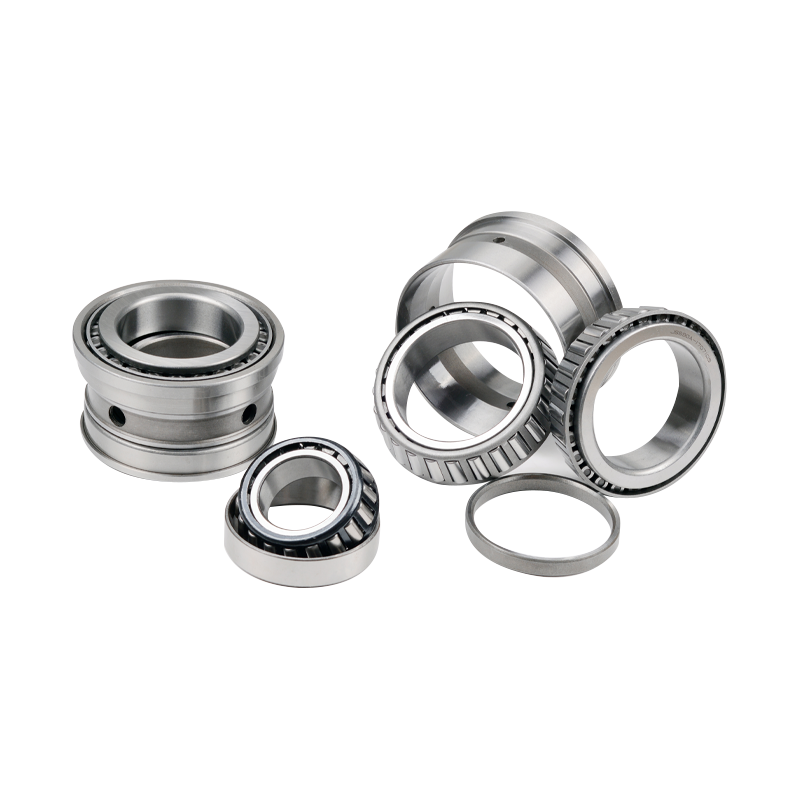

30202 Jednoredni konusni valjkasti ležaj

Konusni valjkasti ležajevi: sastav, prednosti i primjena
Konusni valjkasti ležaj sastoji se od unutarnjeg prstena (poznatog kao konusni ili čašičasti sklop) i vanjskog prstena (poznatog kao čašica). Ove komponente su odvojive. Zovu se konusni valjkasti ležajevi jer je konusni sklop uži na jednom kraju, a i unutarnji i vanjski prsten ležaja dizajnirani su s užom stranom kako bi odgovarali valjcima. Zbog ovakvog rasporeda vrlo su prikladni za nošenje i aksijalnih i radijalnih opterećenja. Što je kut čašice strmiji, to je veća sposobnost ležaja da izdrži potisna (aksijalna) opterećenja. Ovi ležajevi rade s linijskim kontaktom (ispravak: obično linijski kontakt, a ne točkasti kontakt). Prikladni su za okruženja s velikim brzinama i teškim opterećenjem koja zahtijevaju nisko trenje.

Contact Us Kontaktirajte nas
PREV：BT2B 332504/HA2 - dvoredni konusni valjkasti ležajevi DALJE：331138 AG četveroredni konusni valjkasti ležaj
  • Opis
  • Specifikacije
  • Kontaktirajte nas

Ključne prednosti
· Visoka kombinirana nosivost: Zbog svog konusnog dizajna, konusni valjkasti ležajevi mogu istovremeno izdržati značajna radijalna i aksijalna opterećenja, što je superiornije od mnogih drugih vrsta ležajeva.
Visoka nosivost: zahvaljujući svojoj jedinstvenoj strukturi i metodi kontakta, konusni valjkasti ležajevi posjeduju vrlo visoku nosivost, što ih čini idealnim za rukovanje teškim teretima i udarnim opterećenjima.
·Dugi vijek trajanja: Nisko kontaktno naprezanje, pouzdan rad i smanjeno trošenje pridonose produženom radnom vijeku ležaja, nudeći pouzdane performanse čak i pod teškim radnim uvjetima.
· Odvojivo i jednostavno za postavljanje: Unutarnji i vanjski prsten konusno valjkastih ležajeva su odvojivi, što olakšava montažu, demontažu i održavanje bez potrebe za demontažom cijelog pogonskog sustava. Za jednoredne ležajeve, zazor prema potrebi može prilagoditi korisnik.
· Dobra kompenzacija poravnanja: Konusni valjkasti ležajevi posjeduju određeni stupanj sposobnosti samoporavnavanja, što im omogućuje automatsku prilagodbu za neusklađenost vratila, što osigurava ravnomjerniju raspodjelu opterećenja, pomaže u smanjenju trošenja i produljuje vijek trajanja.
· Visoka krutost i preciznost: Konusni valjkasti ležajevi osiguravaju visoku krutost i točnost za sustave vođenja vratila, posebno u primjenama gdje se zahtijevaju preciznost i krutost.

Područja primjene (prijave)
·Automobili: Pogonski sustavi, kao što su mjenjači, diferencijali itd.
· Teški strojevi: Valjaonice, dizalice, rudarska oprema itd.
· Zrakoplovstvo: Oprema visokih performansi, poput zrakoplova i raketa (gdje su zahtjevi za performansama strogi).
·Ostala industrijska polja

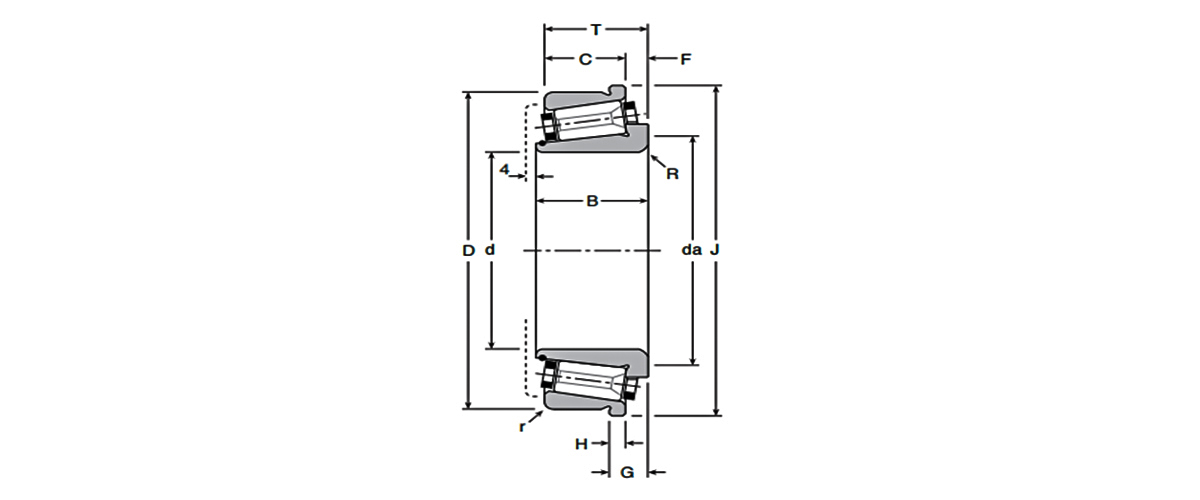

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
Dinamično Statični Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
14.989 34.988 10.998 13.365 10.692 13770 17820 0.051 A 4059/A 4138
15 35 11.75 14.985 11.826 13770 16200 0.055 30202
15 42 14.25 22.437 16.2 12150 14580 0.094 30302
15.875 42.862 14.288 17.415 14.256 10530 13770 0.1 11590/11520
17 40 13.25 18.954 15.066 12150 14580 0.079 30203
17 47 15.25 27.702 20.25 10530 12960 0.13 30303
17 47 20.25 34.668 27.135 9720 12960 0.17 32303
17.462 39.878 13.843 21.141 16.848 12150 14580 0.082 LM 11749/710
19.05 45.237 15.494 27.378 22.275 10530 12960 0.12 LM 11949/910
20 47 15.25 27.621 22.68 9720 12150 0.12 30204
20 52 16.25 33.939 26.325 9720 11340 0.17 30304
20 42 15 24.057 21.87 10530 12960 0.098 32004 X
20 52 22.25 43.983 36.855 8910 11340 0.23 32304
21.43 50.005 17.526 36.774 30.78 9720 12150 0.17 M 12649/610
21.987 45.237 15.494 27.459 25.11 9720 12150 0.12 LM 12749/710
22 44 15 25.029 23.49 10530 12150 0.1 320/22 X
25 52 16.25 30.861 27.135 8910 10530 0.15 30205
25 62 18.25 44.793 34.83 7695 9720 0.26 30305
25 62 18.25 37.746 32.4 6885 8910 0.27 31305
25 47 15 26.892 26.325 9720 11340 0.11 32005 X
25 52 19.25 36.045 35.64 8100 10530 0.19 32205 B
25 62 25.25 60.021 51.03 7290 9720 0.36 32305
25 52 22 46.899 45.36 8100 10530 0.22 33205
25.4 62 19.05 48.195 46.17 7290 8910 0.3 15101/15245
25.4 57.15 17.462 39.771 36.855 8100 9720 0.22 15578/15520
25.4 50.292 14.224 25.92 24.3 8910 10530 0.13 L 44643/610
25.4 57.15 19.431 39.528 36.45 8100 9720 0.24 M 84548/510
26.988 50.292 14.224 25.92 24.3 8910 10530 0.12 L 44649/610
28 58 17.25 37.746 33.615 8100 9720 0.2 302/28
28 52 16 31.59 30.78 8100 10530 0.14 320/28 X

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
28 58 20.25 42.039 40.5 7695 9720 0.25 322/28 B
28.575 57.15 19.845 47.142 44.55 8100 9720 0.22 1988/1922
29 50.292 14.224 25.758 26.325 8910 10530 0.11 L 45449/410
30 62 17.25 40.5 35.64 7290 8910 0.23 30206
30 72 20.75 56.052 45.36 6480 8100 0.38 30306
30 72 20.75 47.223 40.5 6075 7695 0.39 31306
30 55 17 35.559 35.64 8100 9720 0.17 32006 X
30 62 21.25 50.058 46.17 7290 8910 0.29 32206
30 72 28.75 76.95 68.85 6075 8100 0.55 32306
30 62 25 64.557 61.965 6885 8910 0.35 33206
30.162 64.292 21.433 48.924 49.41 6885 8910 0.34 M 86649/610
30.162 68.262 22.225 54.351 56.295 6480 8100 0.41 M 88043/010
31.75 62 18.161 48.195 46.17 7290 8910 0.24 15123/15245
31.75 73.025 29.37 70.065 76.95 6075 7290 0.62 HM 88542/510
31.75 59.131 15.875 34.668 33.615 7695 8910 0.18 LM 67048/010
32 58 17 36.531 37.665 7290 8910 0.19 320/32 X
33.338 69.012 19.845 53.298 54.27 6480 8100 0.35 14131/14276
34.925 73.025 23.812 72.171 71.28 6480 7695 0.48 25877/25821
34.925 72.233 25.4 67.23 72.9 6075 7290 0.5 HM 88649/610
34.925 76.2 29.37 77.112 85.86 5670 6885 0.66 HM 89446/410
34.925 65.088 18.034 46.98 46.17 6885 8100 0.26 LM 48548 A/510
34.987 59.131 15.875 32.886 35.64 7290 8910 0.17 L 68149/110
34.987 59.975 15.875 32.886 35.64 7290 8910 0.18 L 68149/111
35 72 18.25 51.192 45.36 6480 7695 0.33 30207
35 80 22.75 72.009 59.535 6075 7290 0.51 30307
35 80 22.75 61.074 54.27 5103 6885 0.52 31307
35 62 18 42.363 43.74 6885 8100 0.23 32007 X
35 72 24.25 65.772 63.18 6480 7695 0.44 32207
35 80 32.75 94.77 85.86 5427 7290 0.75 32307
35 80 32.75 93.15 92.34 5103 6885 0.8 32307 B

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
35 72 28 84.24 85.86 5670 7695 0.53 33207
36.512 76.2 29.37 77.112 85.86 5670 6885 0.64 HM 89449/410
38 63 17 37.017 42.12 6885 8100 0.21 JL 69349 A/310
38 63 17 37.017 42.12 6885 8100 0.21 JL 69349 X/310
38 63 17 37.017 42.12 6885 8100 0.2 JL 69349/310
38.1 88.5 26.988 99.63 92.34 5427 6885 0.83 418/414
38.1 82.55 29.37 85.86 95.58 5427 6480 0.77 HM 801346 X/310
38.1 82.55 29.37 85.86 95.58 5427 6480 0.78 HM 801346/310
38.1 65.088 18.034 42.93 46.17 6480 8100 0.23 LM 29748/710
38.1 65.088 18.034 42.93 46.17 6480 8100 0.24 LM 29749/710
38.1 65.088 19.812 42.93 46.17 6480 8100 0.25 LM 29749/711
40 80 19.75 61.398 55.08 5670 6885 0.42 30208
40 80 19.75 61.398 55.08 5670 6885 0.44 30208 R
40 90 25.25 85.86 76.95 5103 6480 0.73 30308
40 90 25.25 73.791 66.015 4536 6075 0.72 31308
40 68 19 52.407 57.51 6075 7695 0.28 32008 X
40 80 24.75 74.196 70.065 5670 6885 0.53 32208
40 90 35.25 115.83 113.4 4860 6480 1.03 32308
40 75 26 78.975 84.24 5670 7290 0.5 33108
40 80 32 103.68 106.92 5103 6885 0.73 33208
40 85 33 121.5 121.5 5427 6480 0.9 T2EE 040
40.987 67.975 17.5 43.416 47.385 6480 7695 0.24 LM 300849/811
41.275 76.2 22.225 68.202 70.065 5670 7290 0.44 24780/24720
41.275 87.312 30.162 102.06 106.92 5103 6480 0.85 3585/3525
41.275 88.9 30.162 93.96 102.87 4860 6075 0.91 HM 803146/110
41.275 73.431 19.558 54.756 55.08 6075 7290 0.34 LM 501349/310
41.275 73.431 21.43 54.756 55.08 6075 7290 0.36 LM 501349/314
41.275 82.55 26.543 73.872 74.115 5427 6480 0.62 M 802048/011
42.875 82.931 26.988 80.271 85.86 5427 6480 0.63 25577/25523
44.45 82.931 23.812 80.271 85.86 5427 6480 0.57 25580/25520

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
44.45 83.058 23.876 80.271 85.86 5427 6480 0.57 25580/25522
44.45 82.931 26.988 80.271 85.86 5427 6480 0.61 25580/25523
44.45 93.264 30.163 108.54 118.26 4536 5670 0.98 3782/3720
44.45 95.25 30.958 87.48 78.165 4293 5670 0.93 53178/53377
44.45 111.125 38.1 148.23 153.9 4293 5103 1.85 535/532 A
44.45 88.9 30.162 93.96 102.87 4860 6075 0.86 HM 803149/110
44.45 95.25 30.958 100.44 98.82 4293 5670 1.01 HM 903249/210
45 85 20.75 66.096 61.965 5103 6480 0.47 30209
45 100 27.25 106.92 97.2 4536 5670 0.97 30309
45 100 27.25 91.53 82.62 4050 5427 0.95 31309
45 75 20 58.077 64.8 5670 6885 0.34 32009 X
45 85 24.75 79.947 79.38 5103 6480 0.58 32209
45 100 38.25 140.13 137.7 4293 5670 1.39 32309
45 80 26 84.24 92.34 5427 6480 0.55 33109
45 85 32 106.92 115.83 4860 6075 0.79 33209
45 85 20.638 70.713 66.015 5427 6480 0.5 358 X/354 X
45 95 36 147.42 150.66 4860 5670 1.22 T2ED 045
45 95 29 89.1 90.72 4293 5670 0.93 T7FC 045
45.242 73.431 19.558 53.46 60.75 5670 6885 0.31 LM 102949/910
45.242 77.788 19.842 54.108 56.295 5670 6885 0.37 LM 603049/011
45.242 77.788 21.43 54.108 56.295 5670 6885 0.39 LM 603049/012
45.618 82.931 23.812 80.271 85.86 5427 6480 0.55 25590/25520
45.618 82.931 26.988 80.271 85.86 5427 6480 0.59 25590/25523
45.987 74.975 18 50.301 57.51 5670 6885 0.3 LM 503349/310
46.038 79.375 17.462 49.491 50.22 5670 6885 0.33 18690/18620
46.038 85 20.638 70.713 66.015 5427 6480 0.49 359 S/354 X
47.625 88.9 20.638 76.14 74.115 5103 6075 0.55 369 S/362 A
50 90 21.75 75.411 74.115 4860 6075 0.54 30210
50 110 29.25 124.74 113.4 4293 5103 1.24 30310
50 110 29.25 106.11 97.2 3645 4860 1.22 31310

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
50 80 20 60.831 71.28 5103 6480 0.38 32010 X
50 90 24.75 81.81 81 4860 6075 0.62 32210
50 110 42.25 170.91 171.72 3888 5103 1.83 32310
50 110 42.25 158.76 174.96 3645 4860 1.95 32310 B
50 72 15 33.453 42.93 5670 6885 0.19 32910
50 80 24 68.688 82.62 5103 6480 0.45 33010
50 85 26 85.86 98.82 4860 6075 0.58 33110
50 90 32 115.02 129.6 4293 5670 0.86 33210
50 82 21.501 72.009 81 5103 6480 0.46 JLM 104945/910
50 90 28 105.3 113.4 4860 6075 0.75 JM 205149/110
50 90 28 105.3 113.4 4860 6075 0.75 JM 205149/110 A
50 100 36 153.09 162 4536 5427 1.31 T2ED 050
50 105 32 108.54 110.97 3888 5103 1.25 T7FC 050
50.8 85 17.462 50.301 53.055 5103 6480 0.37 18790/18720
50.8 88.9 20.638 76.14 74.115 5103 6075 0.5 368 A/362 A
50.8 90 25 76.14 74.115 5103 6075 0.58 368 A/362 X
50.8 107.95 36.512 148.23 153.9 4293 5103 1.54 537/532 X
53.975 107.95 36.512 148.23 153.9 4293 5103 1.47 539/532 X
53.975 123.825 36.512 140.94 129.6 3483 4536 1.99 72212/72487
53.975 88.9 19.05 57.915 63.18 4860 5670 0.44 LM 806649/610
55 100 22.75 89.91 85.86 4293 5427 0.7 30211
55 120 31.5 142.56 132.03 3888 4536 1.56 30311
55 120 31.5 120.69 110.97 3483 4536 1.54 31311
55 90 23 80.514 93.96 4536 5670 0.56 32011 X
55 100 26.75 105.3 104.49 4293 5427 0.84 32211
55 120 45.5 198.45 202.5 3483 4536 2.33 32311
55 90 27 89.91 110.97 4536 5670 0.66 33011
55 95 30 110.16 126.36 4536 5427 0.85 33111
55 100 35 137.7 153.9 3888 5103 1.16 33211
55 110 39 178.2 187.92 4050 4860 1.69 T2ED 055

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
55 115 34 125.55 132.03 3483 4536 1.59 T7FC 055
57.15 96.838 21 80.919 82.62 4536 5427 0.59 387 A/382 A
57.15 112.712 30.162 141.75 165.24 3645 4536 1.38 39581/39520
57.15 104.775 30.162 121.5 129.6 4293 5103 1.07 462/453 X
59.987 135.755 53.975 285.93 324 3240 4050 3.94 6391/K-6320
60 110 23.75 97.2 92.34 4050 4860 0.88 30212
60 130 33.5 168.48 158.76 3483 4293 1.95 30312
60 130 33.5 143.37 134.46 3078 4293 1.93 31312
60 95 23 81.81 98.82 4293 5427 0.59 32012 X
60 110 29.75 125.55 129.6 4050 4860 1.15 32212
60 130 48.5 228.42 234.9 3240 4293 2.9 32312
60 130 48.5 219.51 247.05 3078 4050 3.11 32312 B
60 85 17 43.092 60.75 4860 5670 0.3 32912
60 95 27 91.53 115.83 4293 5427 0.7 33012
60 100 30 116.64 137.7 4293 5103 0.92 33112
60 110 38 167.67 191.16 3645 4860 1.55 33212
60 95 24 83.43 106.92 4293 5427 0.62 JLM 508748/710
60 115 40 193.59 210.6 3888 4536 1.85 T2EE 060
60 125 37 153.9 165.24 3240 4293 2.07 T7FC 060
63.5 110 22 87.48 95.58 3888 4860 0.84 395/394 A
63.5 112.712 30.162 141.75 165.24 3645 4536 1.26 39585/39520
63.5 112.712 30.163 123.12 148.23 3888 4536 1.25 3982/3920
65 120 24.75 114.21 108.54 3645 4536 1.12 30213
65 140 36 194.4 184.68 3240 3888 2.42 30313
65 140 36 164.43 156.33 2916 3888 2.36 31313
65 100 23 83.43 102.87 4050 4860 0.63 32013 X
65 120 32.75 150.66 156.33 3645 4536 1.51 32213
65 140 51 261.63 271.35 2916 3888 3.51 32313
65 140 51 247.05 279.45 2916 3888 3.74 32313 B
65 90 17 44.307 64.8 4536 5427 0.32 32913

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
65 100 27 96.39 123.93 4050 5103 0.75 33013
65 110 34 141.75 168.48 3888 4536 1.28 33113
65 120 41 193.59 218.7 3240 4293 1.98 33213
65 105 24 98.82 110.97 4050 4860 0.76 JLM 710949/910
65 110 28 123.12 148.23 3888 4536 1.07 JM 511946/910
65 110 31 137.7 156.33 3888 4860 1.16 T2DD 065
65 130 37 157.14 174.96 3078 4050 2.19 T7FC 065
65.088 135.755 53.975 285.93 324 3240 4050 3.72 6379/K-6320
66.675 110 22 87.48 95.58 3888 4860 0.79 395 A/394 A
66.675 110 22 87.48 95.58 3888 4860 0.78 395 S/394 A
66.675 112.712 30.162 141.75 165.24 3645 4536 1.19 39590/39520
66.675 112.712 30.162 123.12 148.23 3888 4536 1.17 3984/3920
66.675 135.755 53.975 285.93 324 3240 4050 3.64 6386/K-6320
69.85 120 29.795 132.03 150.66 3645 4293 1.33 482/472
69.85 127 36.512 175.77 206.55 3483 4050 1.97 566/563
70 125 26.25 125.55 126.36 3483 4293 1.24 30214
70 150 38 219.51 210.6 3078 3645 2.95 30314
70 150 38 185.49 178.2 2754 3645 2.87 31314
70 110 25 101.25 123.93 3645 4536 0.85 32014 X
70 125 33.25 157.95 168.48 3483 4293 1.6 32214
70 150 54 294.03 307.8 2754 3645 4.28 32314
70 100 20 69.498 90.72 4050 4860 0.49 32914
70 110 31 128.79 158.76 3888 4536 1.07 33014
70 120 37 170.91 202.5 3483 4293 1.68 33114
70 125 41 200.07 230.85 3078 4050 2.09 33214
70 130 43 234.09 263.25 3240 4050 2.48 T2ED 070
70 140 39 177.39 194.4 2754 3645 2.65 T7FC 070
71.438 117.475 30.162 123.12 153.9 3645 4293 1.23 33281/33462
71.438 136.525 46.038 221.13 287.55 3078 3645 3.11 H 715345/311
73.025 127 36.512 175.77 206.55 3483 4050 1.87 567/563

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
75 130 27.25 138.51 142.56 3240 4050 1.38 30215
75 160 40 243.81 234.9 2754 3483 3.49 30315
75 160 40 206.55 198.45 2592 3483 3.39 31315
75 115 25 105.3 132.03 3483 4293 0.91 32015 X
75 130 33.25 159.57 171.72 3240 4050 1.67 32215
75 160 58 336.96 356.4 2592 3483 5.19 32315
75 160 58 332.1 384.75 2592 3240 5.56 32315 B
75 105 20 70.308 93.96 3888 4536 0.51 32915
75 115 31 135.27 184.68 3483 4293 1.18 33015
75 125 37 174.96 214.65 3240 4050 1.78 33115
75 130 41 206.55 243 2916 3888 2.19 33215
75 145 51 307.8 364.5 2916 3645 3.9 JH 415647/610
75 120 31 137.7 174.96 3483 4293 1.31 JM 714249/210
76.2 127 30.162 138.51 165.24 3240 4050 1.47 42687/42620
76.2 133.35 33.338 163.62 210.6 3078 3888 1.94 47678/47620
76.2 139.992 36.512 183.87 226.8 3078 3645 2.43 575/572
77.788 121.442 24.608 93.15 108.54 3483 4293 0.92 34306/34478
77.788 127 30.163 138.51 165.24 3240 4050 1.42 42690/42620
80 140 28.25 149.04 148.23 3078 3888 1.62 30216
80 170 42.5 269.73 259.2 2592 3240 4.13 30316
80 170 42.5 223.56 214.65 2430 3240 4.05 31316
80 125 29 136.08 174.96 3240 4050 1.3 32016 X
80 140 35.25 184.68 198.45 3078 3645 2.06 32216
80 170 61.5 327.24 405 2430 3240 6.19 32316
80 110 20 72.657 101.25 3645 4536 0.54 32916
80 125 36 167.67 230.85 3240 4050 1.63 33016
80 130 37 179.01 226.8 3240 3888 1.87 33116
80 140 46 249.48 303.75 2754 3645 2.91 33216
80 130 35 174.96 222.75 3240 3888 1.77 JM 515649/610
82.55 139.992 36.512 183.87 226.8 3078 3645 2.21 580/572

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
82.55 146.05 41.275 218.7 259.2 2916 3483 2.78 663/653
82.55 150.089 44.45 284.31 328.05 2916 3483 3.41 749 A/742
85 150 30.5 174.96 178.2 2916 3483 2.05 30217
85 180 44.5 301.32 295.65 2430 3078 4.84 30317
85 180 44.5 240.57 230.85 2268 3078 4.62 31317
85 130 29 138.51 181.44 3078 3888 1.35 32017 X
85 150 38.5 213.03 230.85 2916 3483 2.61 32217
85 180 63.5 352.35 429.3 2268 3078 7.08 32317
85 120 23 93.15 126.36 3240 4050 0.78 32917
85 130 36 180.63 251.1 3078 3888 1.73 33017
85 140 41 217.08 275.4 2916 3645 2.43 33117
85 150 49 285.93 348.3 2592 3483 3.57 33217
85 170 48 269.73 307.8 2268 3078 4.85 T7FC 085
85.725 133.35 30.163 144.18 178.2 3078 3645 1.45 497/492 A
88.9 152.4 39.688 191.97 247.05 2754 3483 2.81 593/592 A
88.9 161.925 53.975 327.24 413.1 2592 3240 4.8 6580/6535
89.975 146.975 40 226.8 287.55 2754 3483 2.54 HM 218248/210
90 160 32.5 194.4 198.45 2754 3240 2.53 30218
90 190 46.5 285.93 324 2106 2916 5.63 30318
90 190 46.5 229.23 255.15 1944 2754 5.39 31318
90 140 32 168.48 218.7 2916 3483 1.76 32018 X
90 160 42.5 250.29 275.4 2754 3240 3.33 32218
90 190 67.5 394.47 494.1 2106 2916 8.41 32318
90 125 23 96.39 134.46 3240 3888 0.83 32918
90 140 39 215.46 287.55 2916 3645 2.2 33018
90 150 45 251.1 315.9 2754 3483 3.11 33118
90 160 55 336.15 421.2 2430 3240 4.62 33218
90 161.925 53.975 327.24 413.1 2592 3240 4.74 6581 X/6535
90 145 35 199.26 247.05 2916 3483 2.14 JM 718149 A/110
90 145 35 199.26 247.05 2916 3483 2.14 JM 718149/110

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
92.075 152.4 39.688 191.97 247.05 2754 3483 2.68 598/592 A
95 170 34.5 215.46 222.75 2592 3078 2.99 30219
95 200 49.5 285.93 315.9 2106 2754 6.46 30319
95 200 49.5 254.34 287.55 1944 2754 6.31 31319
95 145 32 166.86 218.7 2754 3483 1.85 32019 X
95 170 45.5 281.88 315.9 2592 3078 4.09 32219
95 200 71.5 433.35 542.7 1944 2754 9.79 32319
95 130 23 98.01 140.13 3078 3645 0.86 32919
95 145 39 220.32 303.75 2754 3483 2.3 33019
95 170 58 372.6 453.6 2268 3078 5.46 33219
95.25 152.4 39.688 191.97 247.05 2754 3483 2.54 594 A/592 A
95.25 152.4 39.688 191.97 247.05 2754 3483 2.55 594/592 A
95.25 168.275 41.275 233.28 295.65 2430 3078 3.77 683/672
99.975 156.975 42 245.43 324 2592 3240 2.88 HM 220149/110
100 180 37 246.24 259.2 2430 2916 3.63 30220
100 215 51.5 349.11 396.9 1944 2592 7.96 30320
100 215 56.5 323.19 376.65 1782 2430 8.64 31320 X
100 150 32 169.29 226.8 2592 3240 1.92 32020 X
100 180 49 315.9 356.4 2430 2916 4.93 32220
100 215 77.5 499.77 631.8 1782 2592 12.5 32320
100 140 25 119.07 165.24 2754 3483 1.15 32920
100 150 39 225.18 315.9 2754 3240 2.38 33020
100 180 63 430.92 530.55 2106 2916 6.73 33220
100 165 47 310.23 388.8 2592 3078 3.89 T2EE 100
100 145 24 124.74 153.9 2754 3483 1.18 T4CB 100
101.6 168.275 41.275 233.28 295.65 2430 3078 3.45 687/672
101.6 212.725 66.675 501.39 672.3 1782 2430 11.2 HH 224335/310
105 190 39 269.73 287.55 2268 2754 4.29 30221
105 225 53.5 374.22 429.3 1782 2430 9.08 30321
105 160 35 200.88 271.35 2592 3078 2.43 32021 X

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
105 190 53 358.83 413.1 2268 2754 6.02 32221
105 225 81.5 522.45 660.15 1620 2430 14.1 32321
105 145 25 120.69 171.72 2754 3240 1.19 32921
105 160 43 245.43 348.3 2592 3078 3.02 33021
107.95 165.1 36.512 207.36 287.55 2430 2916 2.7 56425/56650
109.975 179.975 41.275 248.67 336.15 2268 2754 3.98 64432/64708
110 200 41 264.87 328.05 1944 2592 5.06 30222
110 240 54.5 410.67 473.85 1782 2268 10.8 30322
110 240 63 397.71 473.85 1539 2268 12 31322 X
110 170 38 233.28 315.9 2430 2916 3.07 32022 X
110 200 56 397.71 461.7 2106 2592 7.09 32222
110 240 84.5 546.75 672.3 1539 2268 16.6 32322
110 150 25 124.74 181.44 2592 3240 1.25 32922
110 170 47 277.83 405 2430 2916 3.83 33022
110 180 56 368.55 510.3 2268 2754 5.52 33122
114.3 177.8 41.275 248.67 336.15 2268 2754 3.58 64450/64700
114.3 180.975 34.925 183.87 226.8 2268 2754 2.93 68450/68712
114.3 212.725 66.675 507.06 619.65 2106 2592 10.1 938/932
120 215 43.5 337.77 376.65 1944 2430 6.13 30224
120 260 59.5 486.81 575.1 1620 2106 13.7 30324
120 260 68 468.18 562.95 1377 1944 15.3 31324 X
120 180 38 242.19 336.15 2268 2754 3.29 32024 X
120 215 61.5 464.13 562.95 1944 2430 9.05 32224
120 260 90.5 692.55 907.2 1458 2106 21.4 32324
120 165 29 165.24 247.05 2430 2916 1.79 32924
120 180 48 288.36 437.4 2268 2754 4.18 33024
120 170 27 157.95 202.5 2268 2916 1.74 T4CB 120
127 182.562 39.688 227.61 356.4 2106 2592 3.3 48290/48220
130 230 43.75 365.31 396.9 1782 2268 6.84 30226
130 280 63.75 549.99 648 1458 1944 16.8 30326

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
130 280 72 524.07 631.8 1296 1944 18.5 31326 X
130 200 45 314.28 437.4 1944 2430 4.94 32026 X
130 230 67.75 477.9 672.3 1620 2268 11.2 32226
130 280 98.75 825.39 1085.4 1296 1944 27.3 32326
130 180 32 198.45 295.65 2106 2592 2.39 32926
130 200 55 380.7 550.8 1944 2430 6.13 33026
133.35 196.85 46.038 319.95 473.85 1944 2430 4.65 67391/67322
133.35 177.008 25.4 134.46 226.8 2106 2592 1.72 L 327249/210
139.7 236.538 57.15 509.49 688.5 1782 2106 10.1 HM 231132/110
140 250 45.75 365.31 461.7 1539 2106 8.68 30228
140 300 77 596.97 729 1215 1782 22.6 31328 X
140 210 45 327.24 473.85 1944 2268 5.26 32028 X
140 250 71.75 559.71 810 1539 2106 14.2 32228
140 300 107.75 988.2 1344.6 1296 1782 34.6 32328
140 190 32 204.12 315.9 2106 2430 2.53 32928
140 195 29 195.21 263.25 1944 2430 2.41 T4CB 140
150 270 49 368.55 453.6 1458 1944 10.6 30230
150 320 72 711.99 858.6 1296 1620 24.8 30330
150 320 82 673.92 826.2 1134 1620 27.2 31330 X
150 225 48 369.36 530.55 1782 2106 6.4 32030 X
150 270 77 633.42 923.4 1377 1944 17.9 32230
150 210 38 280.26 429.3 1782 2268 3.95 32930
150 225 59 394.47 700.65 1620 2106 8.04 33030
150 210 32 232.47 315.9 1782 2268 3.08 T4DB 150
152.4 203.2 41.275 203.31 388.8 1944 2268 3.71 LM 330448/410
158.75 205.583 23.812 136.08 226.8 1782 2268 1.92 L 432348/310
158.75 205.583 23.813 136.08 226.8 1782 2268 1.95 L 432349/310
160 290 52 458.46 595.35 1296 1782 13.2 30232
160 340 75 785.7 955.8 1215 1620 28.9 30332
160 240 51 430.92 631.8 1620 1944 7.83 32032 X

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
160 290 84 756.54 1134 1296 1782 23.2 32232
160 220 38 282.69 437.4 1782 2106 4.19 32932
160 220 32 208.17 336.15 1620 2106 3.26 T4DB 160
165.1 336.55 92.075 970.38 1377 1134 1539 37.1 HH 437549/510
170 310 57 532.17 700.65 1215 1620 16.6 30234
170 260 57 506.25 741.15 1539 1782 10.6 32034 X
170 310 91 870.75 1320.3 1215 1620 28.6 32234
170 230 38 284.31 473.85 1620 1944 4.48 32934
170 230 32 248.67 356.4 1620 2106 3.44 T4DB 170
178.595 265.112 51.595 430.92 712.8 1377 1782 9.55 M 336948/912
179.934 265.112 51.595 430.92 712.8 1377 1782 9.38 M 336949/912
180 320 57 509.49 660.15 1215 1620 17 30236
180 280 64 642.33 939.6 1377 1782 14.2 32036 X
180 320 91 865.89 1320.3 1134 1539 29.5 32236
180 250 45 352.35 595.35 1539 1782 6.65 32936
180 240 32 250.29 364.5 1620 1944 3.63 T4DB 180
187.325 282.575 50.8 345.87 562.95 1296 1620 9.92 87737/87111
190 340 60 618.03 810 1134 1458 20.5 30238
190 290 64 652.86 972 1296 1620 14.8 32038 X
190 340 97 1026.27 1563.3 1053 1458 36 32238
190 260 45 358.83 619.65 1458 1782 7.01 32938
190 260 46 358.83 619.65 1458 1782 7.09 JM 738249/210
190.5 282.575 50.8 345.87 562.95 1296 1620 9.57 87750/87111
196.85 241.3 23.812 153.09 255.15 1539 1944 2.1 LL 639249/210
198.298 279.4 46.038 376.65 672.3 1296 1620 9.18 67981/67919
199.949 279.4 46.038 376.65 672.3 1296 1620 8.98 67982/67919
200 360 64 684.45 907.2 1053 1377 24.6 30240
200 310 70 648 1109.7 1134 1539 18.8 32040 X
200 360 104 1053 1620 1053 1377 42.4 32240
200 280 51 476.28 769.5 1377 1620 9.49 32940

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
200 270 37 324.81 486 1377 1782 5.48 T4DB 200
203.2 282.575 46.038 376.65 672.3 1296 1620 8.83 67983/67920
206.375 282.575 46.038 376.65 672.3 1296 1620 8.46 67985/67920
206.375 336.55 98.425 996.3 1749.6 1053 1458 33.9 H 242649/610
220 400 72 857.79 1134 972 1296 34.4 30244
220 340 76 773.55 1344.6 1053 1377 24.6 32044 X
220 400 114 1393.2 2187 891 1215 59.7 32244
220 300 51 486.81 810 1215 1539 10.2 32944
230.188 317.5 47.625 450.36 793.8 1053 1458 10.9 LM 245846/810
231.775 317.5 47.625 450.36 793.8 1053 1458 10.6 LM 245848/810
240 360 76 801.09 1458 972 1296 26.3 32048 X
240 440 127 1553.58 2713.5 810 1053 81.5 32248
240 320 51 505.44 874.8 1134 1377 11 32948
240 320 42 370.98 660.15 1053 1377 8.49 T4EB 240
254 533.4 133.35 1629.72 2227.5 648 891 121 HH 953749/710
255.6 342.9 57.15 565.38 1134 972 1296 14.8 M 349547/510
257.175 358.775 71.438 834.3 1425.6 1053 1296 21.6 M 249747/710
257.175 342.9 57.15 565.38 1134 972 1296 14.1 M 349549/510
260 400 87 1005.21 1782 891 1134 38.2 32052 X
260 480 137 1895.4 2956.5 729 972 103 32252
260 360 63.5 737.1 1239.3 1053 1296 18.9 32952
260 540 109 1717.2 2470.5 688.5 1053 107 BT1B 332973
263.525 325.438 28.575 221.13 445.5 1134 1377 5.3 38880/38820
280 420 87 1043.28 1911.6 810 1053 40.6 32056 X
280 500 137 1952.1 3159 688.5 972 108 32256
292.1 374.65 47.625 436.59 923.4 891 1215 12.4 L 555249/210
300 460 100 1331.64 2430 729 972 57.9 32060 X
300 540 149 2227.5 3847.5 648 891 140 32260 J2/HA1
300 420 76 912.06 1814.4 769.5 1053 31.7 32960
304.8 406.4 63.5 627.75 1377 810 1053 22.3 LM 757049/010

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
317.5 447.675 85.725 1104.03 2187 729 972 41.2 HM 259048/010/HA4
320 480 100 1347.03 2511 688.5 891 60.8 32064 X
320 580 159 2715.93 4455 607.5 810 174 32264
320 440 76 936.36 1911.6 729 972 33.5 32964
333.375 469.9 90.488 1156.68 2308.5 688.5 972 47 HM 261049/010
340 460 76 942.03 1944 688.5 972 35 32968
342.9 450.85 66.675 810 1782 729 972 27.8 LM 361649/610
343.154 450.85 66.675 810 1782 729 972 28 LM 361649 A/610
346.075 488.95 95.25 1241.73 2551.5 688.5 891 55 HM 262749/710
355.65 482.65 60.32 463.32 972 688.5 1053 26.5 431884 A
360 480 76 964.71 2065.5 648 891 37 32972
381 479.425 49.213 516.78 1215 648 891 20 L 865547/512
406.4 549.275 85.725 1188.27 2470.5 567 769.5 53.5 LM 567949/910/HA1
431.8 571.5 74.612 927.45 2065.5 542.7 729 49 LM 869448/410
457.2 573.088 74.612 976.05 2430 542.7 729 43.5 L 570649/610
457.2 615.95 85.725 1290.33 3078 486 648 72 LM 272235/210
457.2 603.25 85.725 1248.21 2754 510.3 688.5 61.5 LM 770949/910
479.425 717.55 136.525 2454.3 5508 429.3 648 190 BT1-8003/HA1
479.425 679.45 128.588 2227.5 5103 453.6 688.5 145 BT1B 332529/HA1
482.6 634.873 80.962 1283.04 2956.5 486 648 60 EE 243190/243250
488.95 634.873 84.138 1174.5 2956.5 486 688.5 63.5 LM 772748/710/HA1
498.475 634.873 80.962 1190.7 2956.5 486 688.5 59.5 EE 243196/243250/HA2
520.7 736.6 88.9 1336.5 2713.5 429.3 607.5 100 EE 982051/982900
536.575 820 152 3167.1 6318 364.5 542.7 272 BT1B 328017/HA4
536.575 761.873 146.05 2721.6 6480 405 542.7 210 M 276449/410
549.199 692.15 80.963 1085.4 2794.5 429.3 891 67 L 476549 AX/510
558.8 736.6 88.108 1590.03 3361.5 405 542.7 92.5 EE 843220/843290
558.8 736.6 104.775 2010.42 4617 405 542.7 115 LM 377449/410
660.4 1000 152.4 3768.12 7695 291.6 388.8 410 BT1B 334140/HA4
660.4 812.8 95.25 1689.66 4536 348.3 453.6 105 L 281147/110

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
680 1000 190 4544.1 10287 291.6 405 485 BT1B 332787/HA4
682.625 1080 200 5435.1 10692 259.2 388.8 640 BT1B 332705/HA4
710 950 113 2316.6 5305.5 291.6 429.3 200 BT1B 332890/HA1
749.3 990.6 159.5 3971.43 9720 275.4 364.5 330 LM 283649/610/HA1
762 889 69.85 1069.2 3078 307.8 405 66.5 LL 483449/418
838.2 1041.4 93.663 1733.4 4212 259.2 348.3 160 EE 763330/763410
900 1180 122 3207.6 7411.5 210.6 291.6 340 BT1B 328214/HA5
1270 1465 100 2759.67 8748 145.8 194.4 265 BT1-8010/HA4
25 62 36.5 71.91 72 6030 9900 0.55 31305/DF
30 72 41.5 90 90 5040 8550 0.82 31306/DF
35 80 45.5 136.8 135 5400 8100 1.06 30307/DF
50 80 40 116.1 158.4 4770 7200 0.78 32010 X/DF
55 120 63 271.8 292.5 3420 5040 3.26 30311/DF
55 120 63 230.4 247.5 3060 5040 3.25 31311/DF
70 110 50 192.6 274.5 3420 5040 1.76 32014 X/DF
70 110 62 245.7 360 3420 5040 2.19 33014/DF
75 160 80 394.2 441 2160 3870 7.17 31315/DF
75 115 62 257.4 409.5 3240 4770 2.41 33015/DF
75 115 62 257.4 409.5 3240 4770 2.41 33015/DFC240
80 125 58 259.2 387 2880 4500 2.67 32016 X/DF
80 140 70.5 351.9 441 2700 4050 4.24 32216/DF
80 130 74 341.1 504 2880 4320 3.82 33116/DF
85 180 89 459 513 1980 3420 9.89 31317/DF
85 130 58 263.7 405 2880 4320 2.8 32017 X/DF
90 190 93 437.4 567 1710 3060 11.4 31318/DF
90 140 64 320.4 486 2700 3870 3.63 32018 X/DF
90 160 85 476.1 612 2340 3600 6.86 32218/DF
95 200 99 485.1 639 1620 3060 13.5 31319/DF
95 170 91 537.3 702 2340 3420 8.4 32219/DF
100 180 74 468.9 576 2160 3240 7.52 30220/DF

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
100 215 113 616.5 837 1530 2700 18.4 31320 X/DF
100 150 64 323.1 504 2340 3600 3.92 32020 X/DF
100 180 98 601.2 792 2160 3240 10.2 32220/DF
105 160 70 383.4 603 2340 3420 5.03 32021 X/DF
110 240 126 756.9 1044 1350 2520 25.9 31322 X/DF
110 170 76 444.6 702 2160 3240 6.32 32022 X/DF
110 170 76 444.6 702 2160 3240 6.32 32022 X/DFC200
110 200 112 757.8 1026 1980 2880 14.5 32222/DF
110 180 112 702.9 1125 1980 3060 11.3 33122/DF
120 215 87 644.4 823.5 1800 2700 12.7 30224/DF
120 260 136 892.8 1260 1260 2160 32.5 31324 X/DF
120 180 76 461.7 747 1980 3060 6.77 32024 X/DF
120 215 123 884.7 1260 1800 2700 18.6 32224/DF
120 260 181 1319.4 2016 1440 2340 45.1 32324/DF
120 180 96 549.9 972 1980 3060 8.58 33024/DF
130 280 144 999 1404 1170 2160 39.6 31326 X/DF
130 230 135.5 910.8 1494 1440 2520 23.1 32226/DF
130 180 64 378 661.5 1980 2880 4.94 32926/DF
140 250 91.5 695.7 1026 1350 2340 17.9 30228/DF
140 300 154 1137.6 1620 1080 1980 49.1 31328 X/DF
140 210 90 622.8 1044 1710 2520 10.9 32028 X/DF
140 250 143.5 1066.5 1800 1350 2340 29.3 32228/DF
150 270 98 702.9 1008 1260 2160 22.1 30230/DF
150 320 164 1284.3 1836 990 1800 58.6 31330 X/DF
150 225 96 703.8 1188 1620 2340 13.3 32030 X/DF
150 270 154 1206.9 2052 1260 2160 37.3 32230/DF
160 290 104 873.9 1314 1170 1980 27.4 30232/DF
160 240 102 820.8 1404 1440 2160 16.2 32032 X/DF
160 290 168 1441.8 2520 1170 1980 48 32232/DF
170 260 114 963.9 1647 1350 1980 21.7 32034 X/DF

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
170 310 182 1658.7 2925 1080 1800 59.3 32234/DF
180 320 114 971.1 1467 1080 1800 35.5 30236/DF
180 280 128 1224 2088 1260 1980 29.2 32036 X/DF
180 320 182 1649.7 2925 990 1710 61.1 32236/DF
180 250 90 671.4 1314 1350 1980 13.8 32936/DF
190 290 128 1242.9 2160 1170 1800 30.6 32038 X/DF
190 260 90 684 1377 1260 1980 14.5 32938/DF
200 310 140 1234.8 2475 990 1710 39 32040 X/DF
200 360 208 2006.1 3600 900 1530 11.3 32240/DF
220 340 152 1473.3 3015 900 1530 12.7 32044 X/DF
220 400 228 2654.1 4860 810 1350 123 32244/DF
220 300 102 927 1800 1080 1710 21.1 32944/DF
240 360 152 1525.5 3195 855 1440 54.3 32048 X/DF
240 440 254 2960.1 6030 720 1170 172 32248/DF
260 400 174 1914.3 3960 765 1260 78.8 32052 X/DF
260 480 274 3611.7 6615 675 1080 213 32252/DF
280 420 174 1987.2 4275 720 1170 84 32056 X/DF
280 500 274 2169 7020 630 1080 226 32256/DF
300 460 200 2536.2 5400 675 1080 119 32060 X/DF
320 480 200 2566.8 5580 630 990 104 32064 X/DF
320 440 152 1783.8 4185 675 1080 69 32964/DF
340 460 152 1795.5 4320 630 1080 73 32968/DF
360 480 152 1838.7 4590 603 990 302 32972/DF
25 52 16.25 13300 0.19 74025/74052U Ležaj
30 62 21.25 11600 0.28 70030/70062U ležaj
30 66.675 20.63 10400 0.33 80030/80066XU ležaj
30 68 20.63 10400 0.33 80030/80068U ležaj
31.75 72 24.25 9600 0.38 100031X/100072U Ležaj
31.75 76.2 24.25 9600 0.38 100031X/100076XU ležaj
31.75 80 24.25 9600 0.38 100031X/100080U ležaj

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
33.338 66.675 20.63 10400 0.3 80033X/80066XU ležaj
33.338 68 20.63 10400 0.33 80033X/80068U ležaj
34.925 72 24.25 9600 0.38 100034X/100072U Ležaj
34.925 76.2 24.25 9600 0.38 100034X/100076XU ležaj
34.925 80 24.25 9600 0.38 100034X/100080U ležaj
35 66.675 20.63 10400 0.27 80035/80066XU ležaj
35 68 20.63 10400 0.33 80035/80068U ležaj
35 72 24.25 9600 0.38 100035/100072U Ležaj
35 76.2 24.25 9600 0.38 100035/100076XU ležaj
35 80 24.25 9600 0.38 100035/100080U Ležaj
36 72 17 9600 0.26 102036/102072U Ležaj
38.1 76 24.75 8800 0.475 101038X/101076U Ležaj
38.1 76.2 24.75 8800 0.475 101038X/101076XU ležaj
38.1 80 24.75 8800 0.475 101038X/101080U ležaj
40 76 24.75 8800 0.475 101040/101076U Ležaj
40 76.2 24.75 8800 0.475 101040/101076XU ležaj
40 80 24.75 8800 0.475 101040/101080U Ležaj
40 85 20.63 8200 0.51 112040/112085U Ležaj
41.275 76 24.75 8800 0.475 101041X/101076U Ležaj
41.275 76.2 24.75 8800 0.475 101041X/101076XU ležaj
41.275 80 24.75 8800 0.475 101041X/101080U ležaj
41.275 85 20.63 8200 0.45 112041X/112085U Ležaj
44.45 85 20.63 8200 0.45 112044X/112085U Ležaj
44.45 85 24.75 8200 0.5 119044X/119085U Ležaj
44.45 88.9 24.75 8200 0.5 119044X/119088XU ležaj
44.45 90 26.75 7400 0.61 111044X/111090U Ležaj
44.45 93.266 26.75 7400 0.61 111044X/111093XU ležaj
45 80 25 8200 0.45 87045/87080U Ležaj
45 85 20.63 8200 0.45 112045/112085U Ležaj
45 85 24.75 8200 0.5 119045/119085U Ležaj

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
45 88.9 24.75 8200 0.5 119045/119088XU ležaj
50 90 25 6900 0.61 85050/85090U Ležaj
50 90 26.75 7400 0.61 111050/111090U Ležaj
50 93.266 26.75 7400 0.61 111050/111093XU ležaj
50 96.838 26.75 6900 0.885 110050/110096XU ležaj
50 98.425 26.75 6900 0.885 110050/110098XU ležaj
50 100 26.75 6900 0.885 110050/110100U Ležaj
50.8 90 26.75 7400 0.61 111050X/111090U ležaj
50.8 93.266 26.75 7400 0.66 111050X/111093XU ležaj
50.8 96.838 26.75 6900 0.885 110050X/110096XU ležaj
50.8 98.425 26.75 6900 0.885 110050X/110098XU ležaj
50.8 100 26.75 6900 0.885 110050X/110100U ležaj
53.975 96.838 26.75 6900 0.885 110053X/110096XU ležaj
53.975 98.425 26.75 6900 0.885 110053X/110098XU ležaj
53.975 100 26.75 6900 0.885 110053X/110100U ležaj
55 96.838 26.75 6900 0.885 110055/110096XU ležaj
55 98.425 26.75 6900 0.885 110055/110098XU ležaj
55 100 26.75 6900 0.795 110055/110100U Ležaj
57.15 96.838 26.75 6900 0.885 110057X/110096XU ležaj
57.15 98.425 26.75 6900 0.885 110057X/110098XU ležaj
57.15 100 26.75 6900 0.885 110057X/110100U Ležaj
57.15 100 25.4 6600 0.66 113057X/113100U Ležaj
57.15 101.6 25.4 6600 0.66 113057X/113101XU ležaj
57.15 110 30.16 6200 1.1 120057X/120110U Ležaj
57.15 112.712 30.16 6200 1.1 120057X/120112XU ležaj
60 95 24 6800 0.72 104060/104095U Ležaj
60 100 24 6800 0.72 104060/104100U Ležaj
60 100 25.4 6600 0.66 113060/113100U Ležaj
60 101.6 25.4 6600 0.66 113060/113101XU ležaj
60 110 24 6800 0.72 104060/104110U Ležaj

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
45 88.9 24.75 8200 0.5 119045/119088XU ležaj
50 90 25 6900 0.61 85050/85090U Ležaj
50 90 26.75 7400 0.61 111050/111090U Ležaj
50 93.266 26.75 7400 0.61 111050/111093XU ležaj
50 96.838 26.75 6900 0.885 110050/110096XU ležaj
50 98.425 26.75 6900 0.885 110050/110098XU ležaj
50 100 26.75 6900 0.885 110050/110100U Ležaj
50.8 90 26.75 7400 0.61 111050X/111090U ležaj
50.8 93.266 26.75 7400 0.66 111050X/111093XU ležaj
50.8 96.838 26.75 6900 0.885 110050X/110096XU ležaj
50.8 98.425 26.75 6900 0.885 110050X/110098XU ležaj
50.8 100 26.75 6900 0.885 110050X/110100U ležaj
53.975 96.838 26.75 6900 0.885 110053X/110096XU ležaj
53.975 98.425 26.75 6900 0.885 110053X/110098XU ležaj
53.975 100 26.75 6900 0.885 110053X/110100U ležaj
55 96.838 26.75 6900 0.885 110055/110096XU ležaj
55 98.425 26.75 6900 0.885 110055/110098XU ležaj
55 100 26.75 6900 0.795 110055/110100U Ležaj
57.15 96.838 26.75 6900 0.885 110057X/110096XU ležaj
57.15 98.425 26.75 6900 0.885 110057X/110098XU ležaj
57.15 100 26.75 6900 0.885 110057X/110100U Ležaj
57.15 100 25.4 6600 0.66 113057X/113100U Ležaj
57.15 101.6 25.4 6600 0.66 113057X/113101XU ležaj
57.15 110 30.16 6200 1.1 120057X/120110U Ležaj
57.15 112.712 30.16 6200 1.1 120057X/120112XU ležaj
60 95 24 6800 0.72 104060/104095U Ležaj
60 100 24 6800 0.72 104060/104100U Ležaj
60 100 25.4 6600 0.66 113060/113100U Ležaj
60 101.6 25.4 6600 0.66 113060/113101XU ležaj
60 110 24 6800 0.72 104060/104110U Ležaj

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
60 110 30.16 6200 1.09 120060/120110U Ležaj
60 112.712 30.16 6200 1.1 120060/120112XU ležaj
60 120 29.79 5700 1.315 130060/130120U Ležaj
60 127 29.79 5700 1.315 130060/130127U Ležaj
60.325 100 25.4 6600 0.66 113060X/113100U ležaj
60.325 101.6 25.4 6600 0.66 113060X/113101XU ležaj
63.5 110 30.16 6200 1 120063X/120110U Ležaj
63.5 112.712 30.16 6200 1.1 120063X/120112XU ležaj
63.5 120 29.79 5700 1.315 130063X/130120U Ležaj
63.5 127 29.79 5700 1.315 130063X/130127U Ležaj
65 120 29.79 5700 1.315 130065/130120U Ležaj
65 127 29.79 5700 1.315 130065/130127U Ležaj
69.85 112.712 30.16 5800 0.96 124069X/124112XU ležaj
69.85 120 29.79 5700 1.19 130069X/130120U Ležaj
69.85 120 38.1 5700 1.67 135069X/135120U Ležaj
69.85 127 29.79 5700 1.315 130069X/130127U Ležaj
70 110 25 5800 0.72 32014 Ležaj
70 112.712 30.16 5800 0.96 124070/124112XU ležaj
70 120 29.79 5700 1.185 130070/130120U Ležaj
70 127 29.79 5700 1.315 130070/130127U Ležaj
73.025 120 24.6 5500 1.49 123073X/123120U Ležaj
73.025 120.65 24.6 5500 1.49 123073X/123120XU ležaj
73.025 121.444 24.6 5500 1.49 123073X/123121XU ležaj
73.025 123.825 24.6 5500 1.49 123073X/123123XU ležaj
75 120 24.6 5500 1.49 123075/123120U Ležaj
75 120.65 24.6 5500 1.49 123075/123120XU ležaj
75 121.444 24.6 5500 1.49 123075/123121XU ležaj
75 123.825 24.6 5500 1.49 123075/123123XU ležaj
75 127 33.25 5300 1.56 133075/133127U Ležaj
75 130 33.25 5300 1.56 133075/133130U Ležaj

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
75 133.35 33.25 5300 1.56 133075/133133XU Ležaj
75 136.525 33.25 5300 1.56 133075/133136XU Ležaj
76.2 120 24.6 5500 1.49 123076X/123120U Ležaj
76.2 120.65 24.6 5500 1.49 123076X/123120XU ležaj
76.2 121.444 24.6 5500 1.49 123076X/123121XU ležaj
76.2 123.825 24.6 5500 1.49 123076X/123123XU ležaj
76.2 127 33.25 5300 1.56 133076X/133127U Ležaj
76.2 130 33.25 5300 1.56 133076X/133130U Ležaj
76.2 133.35 33.25 5300 1.56 133076X/133133XU Ležaj
76.2 136.525 33.25 5300 1.56 133076X/133136XU Ležaj
77.788 120 24.6 5500 1.49 123077X/123120U Ležaj
77.788 120.65 24.6 5500 1.49 123077X/123120XU ležaj
77.788 121.444 24.6 5500 1.49 123077X/123121XU ležaj
77.788 123.825 24.6 5500 1.49 123077X/123123XU Ležaj
80 140 36.5 4900 2.04 140080/140140U Ležaj
80.962 133.35 30.16 4900 1.85 126080X/126133XU ležaj
80.962 136.525 30.16 4900 1.85 126080X/126136XU ležaj
82.55 133.35 30.16 4900 1.85 126082X/126133XU ležaj
82.55 136.525 30.16 4900 1.85 126082X/126136XU ležaj
82.55 140 36.5 4900 1.94 140082X/140140U Ležaj
84.138 133.35 30.16 4900 1.85 126084X/126133XU ležaj
84.138 136.525 30.16 4900 1.85 126084X/126136XU ležaj
85 130 29 4400 1.5 32017 Ležaj
85 130 36 4400 1.5 33017 Ležaj
85 140 36.5 4900 1.84 140085/140140U Ležaj
85 170 45.5 4200 3.85 210085/210170U Ležaj
85.725 133.35 30.16 4900 1.85 126085X/126133XU ležaj
85.725 136.525 30.16 4900 1.85 126085X/126136XU ležaj
88.9 133.35 30.16 4900 1.85 126088X/126133XU ležaj
88.9 136.525 30.16 4900 1.85 126088X/126136XU ležaj

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
90 133.35 30.16 4800 1.76 117090/117133XU Ležaj
90 140 32 4200 1.75 32018 Ležaj
90 150 35 4400 2.08 131090/131150U Ležaj
90 152.4 35 4400 2.08 131090/131152XU ležaj
90 152.4 38.1 4300 2.3 160090/160152XU ležaj
90 158.75 35 4400 2.08 131090/131158XU ležaj
90 158.75 38.1 4300 2.3 160090/160158XU ležaj
90 160 38.1 4300 2.3 160090/160160U Ležaj
90 161.925 38.1 4300 2.3 160090/160161XU ležaj
90 170 45.5 4200 3.85 210090/210170U Ležaj
92.075 150 35 4400 2.08 131092X/131150U Ležaj
92.075 152.4 35 4400 2.08 131092X/131152XU ležaj
92.075 158.75 35 4400 2.08 131092X/131158XU ležaj
93.663 150 35 4400 2.08 131093X/1311500U Ležaj
93.663 152.4 35 4400 2.14 131093X/131152XU ležaj
93.663 158.75 35 4400 2.08 131093X/131158XU ležaj
95 145 32 4000 1.8 32019 Ležaj
95 150 35 4400 2.08 131095/131150U Ležaj
95 152.4 35 4400 2.08 131095/131152XU ležaj
95 158.75 35 4400 2.08 131095/131158XU ležaj
95 170 45.5 4200 3.85 210095/210170U Ležaj
97 150 35 4400 2.08 131097/131150U Ležaj
97 152.4 35 4400 2 131097/131152XU ležaj
97 158.75 35 4400 2.08 131097/131158XU ležaj
98.425 152.4 38.1 4300 2.3 160098X/160152XU ležaj
98.425 158.75 38.1 4300 2.3 160098X/160158XU ležaj
98.425 160 38.1 4300 2.3 160098X/160160U Ležaj
98.425 161.925 38.1 4300 2.3 160098X/160161XU ležaj
100 150 32 3800 1.9 32020 Ležaj
100 170 47.62 3900 4.9 180100/180170U Ležaj

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
100 180 47.62 3900 4.505 180100/180180U Ležaj
100 180.975 47.62 3900 4.9 180100/180180XU ležaj
100 190 47.62 3900 4.9 180100/180190U Ležaj
101.6 165.1 36.52 3900 3.9 141101X/141165XU ležaj
101.6 170 47.62 3900 4.9 180101X/180170U Ležaj
101.6 180 47.62 3900 4.9 180101X/180180U ležaj
101.6 180.975 47.62 3900 4.55 180101X/180180XU ležaj
101.6 190 47.62 3900 4.88 180101X/180190U Ležaj
105 160 35 3600 2.4 32021 Ležaj
105 170 47.62 3900 4.9 180105/180170U Ležaj
105 180 47.62 3900 4.9 180105/180180U Ležaj
105 180.975 47.62 3900 4.32 180105/180180XU ležaj
105 190 47.62 3900 4.65 180105/180190U Ležaj
107.95 165.1 36.52 3900 3.9 141107X/141165XU ležaj
110 170 38 3400 3 32022 Ležaj
111.125 180.975 47.62 3600 3.95 181111X/181180XU ležaj
111.125 190 47.62 3600 4.63 181111X/181190U Ležaj
111.125 190.5 47.62 3600 4.67 181111X/181190XU ležaj
111.125 200.025 47.62 3600 4.63 181111X/181200XU ležaj
115 165 28 3900 1.58 105115/105165U Ležaj
115 180.975 47.62 3600 3.7 181115/181180XU ležaj
115 190 47.62 3600 4.38 181115/181190U Ležaj
115 190.5 47.62 3600 4.42 181115/181190XU ležaj
115 200.025 47.62 3600 4.63 181115/181200XU ležaj
118 180.975 47.62 3600 3.49 181118/181180XU ležaj
118 190 47.62 3600 4.08 181118/181190U Ležaj
118 190.5 47.62 3600 4.12 181118/181190XU ležaj
118 200.025 47.62 3600 4.63 181118/181200XU ležaj
120 165 28 3900 1.58 105120/105165U Ležaj
120 180 38 3200 3.25 32024 Ležaj

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
120 190 47.62 3500 4.05 184120/184190U Ležaj
120 190.5 47.62 3500 4.05 184120/184190XU ležaj
120 199 47.62 3500 4.05 184120/184199U Ležaj
120 200 47.62 3500 4.05 184120/184200U Ležaj
127 196.85 37.93 3400 3.7 164127X/164196XU ležaj
127 200.025 37.93 3400 3.7 164127X/164200XU ležaj
127 215 47.62 3100 6.4 200127X/200215U Ležaj
127 215.9 47.62 3100 6.4 200127X/200215XU ležaj
130 180 32 3000 2.1 32926 Ležaj
133.35 196.85 37.93 3400 3.7 164133X/164196XU ležaj
133.35 200.025 37.93 3400 3.7 164133X/164200XU ležaj
133.35 215 47.62 3100 6.4 200133X/200215U ležaj
133.35 215.9 47.62 3100 5.875 200133X/200215XU ležaj
136.525 215 47.62 3100 6.4 200136X/200215U ležaj
136.525 215.9 47.62 3100 5.615 200136X/200215XU ležaj
139.7 215 47.62 3100 6.4 200139X/200215U ležaj
139.7 215.9 47.62 3100 6.4 200139X/200215XU ležaj
139.7 241.3 57.15 2900 9.74 240139X/240241XU ležaj
140 200 38.15 3100 3.33 161140/161200U Ležaj
140 200.025 38.15 3100 3.33 161140/161200XU ležaj
140 210 45 2600 4.7 32028 Ležaj
142.875 200 38.15 3100 3.33 161142X/161200U Ležaj
142.875 200.025 38.15 3100 3.33 161142X/161200XU ležaj
145 241.3 57.15 2900 9.2 240145/240241XU ležaj
145 256 47.62 2700 6.82 203145/203235U Ležaj
149.225 241.3 57.15 2900 9.74 240149X/240241XU ležaj
150 210 38 3000 3.4 163150/163210U Ležaj
152.4 222.25 46.82 3000 5.1 183152X/183222XU ležaj
152.4 254 66.67 2600 11.765 281152X/281254XU ležaj
152.4 266.7 66.67 2600 11.765 281152X/281266XU ležaj

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
155.575 254 66.67 2600 11.765 281155X/281254XU ležaj
155.575 266.7 66.67 2600 11.765 281155X/281266XU ležaj
156 235 47.62 2700 6.82 203156/203235U Ležaj
165.1 254 46.03 2600 7.1 186165X/186254XU ležaj
170 254 46.03 2600 7.1 186170/186254XU ležaj
177.8 227.013 30.16 2700 2.64 115177X/115227XU ležaj
177.8 254 46.03 2600 7.1 186177X/186254XU ležaj
177.8 288.925 63.5 2300 14.6 280177X/280288XU ležaj
185 258 46 2500 5.3 187185/187258U Ležaj
190 266.7 47.62 2400 7 204190/204266XU ležaj
190.5 266.7 47.62 2400 7 204190X/204266XU ležaj
190.5 282.575 50.8 2300 9 242190X/242282XU ležaj
190.5 290 47 2200 8 206190X/206290U Ležaj
203.2 310 63.5 2100 15.5 283203X/283310U Ležaj
203.2 317.5 63.5 2100 16.84 283203X/283317XU Ležaj
210 290 47 2200 8 206210/206290U Ležaj
210 310 63.5 2100 14.2 283210/283310U Ležaj
210 317.5 63.5 2100 15.54 283210/283317XU Ležaj
215.9 355.6 68.26 1900 22.4 284215X/284355XU ležaj
228.6 355.6 68.26 1900 22.4 284228X/284355XU ležaj
230 327.025 52.4 1900 11.65 244230/244327XU Ležaj
230 330 52.4 1900 12.5 244230/244330U Ležaj
234.95 327.025 52.4 1900 10.8 244234X/244327XU ležaj
234.95 330 52.4 1900 11.95 244234X/244330U Ležaj
234.95 355.6 68.26 1900 21.16 284234X/284355XU ležaj
254 400.05 57.15 1700 24.1 382254X/382400XU ležaj
275 406.4 78 1600 31.71 320275/320406XU ležaj
280.194 406.4 78 1600 30.33 320280X/320406XU ležaj
330.2 482.6 85.72 1400 49.5 380330X/380482XU ležaj
338.138 419.1 36.5 1500 14.2 152338X/152419XU ležaj

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
355.6 482.6 60.32 1400 25.5 282355X/282482XU ležaj
381 508 80 1300 36.8 303381X/303508XU ležaj
406.4 549.275 85 1200 46.5 323406XS/323549XU Ležaj
431.8 533.4 50.8 1200 20 232431X/232533XU ležaj
431.8 571.5 74.61 1200 28.5 306431X/306571XU ležaj
457.2 596.9 80 1100 45 300457X/300596XU ležaj
457.2 603.25 85.72 1100 47.5 305457X/305603XU ležaj
506 636 80 1000 55 307506/307636U Ležaj
25 52 16.25 13300 0.22 74025/74052CF ležaj
30 62 21.25 11600 0.31 70030/70062CF ležaj
30 66.675 20.63 10400 0.36 80030/80066XCF ležaj
30 68 20.63 10400 0.36 80030/80068CF ležaj
31.75 72 24.25 9600 0.395 100031X/100072CF ležaj
31.75 76.2 24.25 9600 0.395 100031X/100076XCF ležaj
31.75 80 24.25 9600 0.395 100031X/100080CF ležaj
33.338 66.675 20.63 10400 0.36 80033X/80066XCF ležaj
33.338 68 20.63 10400 0.36 80033X/80068CF ležaj
34.925 72 24.25 9600 0.395 100034X/100072CF ležaj
34.925 76.2 24.25 9600 0.395 100034X/100076XCF ležaj
34.925 80 24.25 9600 0.395 100034X/100080CF ležaj
35 66.675 20.63 10400 0.34 80035/80066XCF ležaj
35 68 20.63 10400 0.36 80035/80068CF ležaj
35 72 24.25 9600 0.395 100035/100072CF ležaj
35 76.2 24.25 9600 0.395 100035/100076XCF ležaj
35 80 24.25 9600 0.395 100035/100080CF ležaj
36 72 17 9600 0.275 102036/102072CF ležaj
38.1 76 24.75 8800 0.49 101038X/101076CF ležaj
38.1 76.2 24.75 8800 0.49 101038X/101076XCF ležaj
38.1 80 24.75 8800 0.49 101038X/101080CF ležaj
40 76 24.75 8800 0.49 101040/101076CF ležaj

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
40 76.2 24.75 8800 0.49 101040/101076XCF ležaj
40 80 24.75 8800 0.5 101040/101080CF ležaj
40 85 20.63 8200 0.53 112040/112085CF ležaj
41.275 76 24.75 8800 0.49 101041X/101076CF ležaj
41.275 76.2 24.75 8800 0.49 101041X/101076XCF ležaj
41.275 80 24.75 8800 0.49 101041X/101080CF ležaj
41.275 85 20.63 8200 0.47 112041X/112085CF ležaj
44.45 85 20.63 8200 0.47 112044X/112085CF ležaj
44.45 85 24.75 8200 0.56 119044X/119085CF ležaj
44.45 88.9 24.75 8200 0.56 119044X/119088XCF ležaj
44.45 90 26.75 7400 0.635 111044X/111090CF ležaj
44.45 93.266 26.75 7400 0.635 111044X/111093XCF ležaj
45 80 25 8200 0.5 87045/87080CF ležaj
45 85 20.63 8200 0.47 112045/112085CF Ležaj
45 85 24.75 8200 0.52 119045/119085CF Ležaj
45 88.9 24.75 8200 0.56 119045/119088XCF ležaj
50 90 25 6900 0.65 85050/85090CF ležaj
50 90 26.75 7400 0.635 111050/111090CF Ležaj
50 93.266 26.75 7400 0.635 111050/111093XCF ležaj
50 96.838 26.75 6900 0.915 110050/110096XCF ležaj
50 98.425 26.75 6900 0.915 110050/110098XCF ležaj
50 100 26.75 6900 0.915 110050/110100CF ležaj
50.8 90 26.75 7400 0.635 111050X/111090CF ležaj
50.8 96.838 26.75 6900 0.915 110050X/110096XCF ležaj
50.8 98.425 26.75 6900 0.915 110050X/110098XCF ležaj
50.8 100 26.75 6900 0.915 110050X/110100CF ležaj
53.975 96.838 26.75 6900 0.915 110053X/110096XCF ležaj
53.975 98.425 26.75 6900 0.915 110053X/110098XCF ležaj
53.975 100 26.75 6900 0.915 110053X/110100CF ležaj
55 96.838 26.75 6900 0.915 110055/110096XCF ležaj

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
55 98.425 26.75 6900 0.915 110055/110098XCF ležaj
55 100 26.75 6900 0.825 110055/110100CF ležaj
57.15 96.838 26.75 6900 0.915 110057X/110096XCF ležaj
57.15 98.425 26.75 6900 0.915 110057X/110098XCF ležaj
57.15 100 26.75 6900 0.915 110057X/110100CF ležaj
57.15 100 25.4 6600 0.88 113057X/113100CF ležaj
57.15 101.6 25.4 6600 0.88 113057X/113101XCF ležaj
57.15 110 30.16 6200 1.13 120057X/120110CF ležaj
57.15 112.712 30.16 6200 1.13 120057X/120112XCF ležaj
60 95 24 6800 0.75 104060/104095CF ležaj
60 100 24 6800 0.8 104060/104100CF ležaj
60 100 25.4 6600 0.88 113060/113100CF ležaj
60 101.6 25.4 6600 0.88 113060/113101XCF ležaj
60 110 24 6800 1.12 104060/104110CF ležaj
60 110 30.16 6200 1.13 120060/120110CF ležaj
60 112.712 30.16 6200 1.13 120060/120112XCF ležaj
60 120 29.79 5700 1.365 130060/130120CF ležaj
60 127 29.79 5700 1.365 130060/130127CF ležaj
60.325 100 25.4 6600 0.88 113060X/113100CF ležaj
60.325 101.6 25.4 6600 0.88 113060X/113101XCF ležaj
63.5 110 30.16 6200 1.04 120063X/120110CF ležaj
63.5 120 29.79 5700 1.365 130063X/130120CF ležaj
63.5 127 29.79 5700 1.365 130063X/130127CF ležaj
65 120 29.79 5700 1.365 130065/130120CF ležaj
65 127 29.79 5700 1.365 130065/130127CF Ležaj
69.85 112.712 30.16 5800 0.995 124069X/124112XCF ležaj
69.85 120 29.79 5700 1.24 130069X/130120CF ležaj
69.85 120 38.1 5700 1.73 135069X/135120CF ležaj
69.85 127 29.79 5700 1.365 130069X/130127CF ležaj
70 112.712 30.16 5800 0.995 124070/124112XCF ležaj

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
70 120 29.79 5700 1.235 130070/130120CF ležaj
70 127 29.79 5700 1.365 130070/130127CF Ležaj
73.025 120 24.6 5500 1.55 123073X/123120CF ležaj
73.025 120.65 24.6 5500 1.55 123073X/123120XCF ležaj
73.025 121.444 24.6 5500 1.55 123073X/123121XCF ležaj
73.025 123.825 24.6 5500 1.55 123073X/123123XCF ležaj
75 120 24.6 5500 1.55 123075/123120CF Ležaj
75 120.65 24.6 5500 1.55 123075/123120XCF ležaj
75 121.444 24.6 5500 1.55 123075/123121XCF ležaj
75 123.825 24.6 5500 1.55 123075/123123XCF ležaj
75 127 33.25 5300 1.62 133075/133127CF Ležaj
75 130 33.25 5300 1.62 133075/133130CF Ležaj
75 133.35 33.25 5300 1.62 133075/133133XCF ležaj
75 136.525 33.25 5300 1.62 133075/133136XCF ležaj
76.2 120 24.6 5500 1.55 123076X/123120CF ležaj
76.2 120.65 24.6 5500 1.55 123076X/123120XCF ležaj
76.2 121.444 24.6 5500 1.55 123076X/123121XCF ležaj
76.2 123.825 24.6 5500 1.55 123076X/123123XCF ležaj
76.2 127 33.25 5300 1.62 133076X/133127CF ležaj
76.2 130 33.25 5300 1.62 133076X/133130CF ležaj
76.2 133.35 33.25 5300 1.62 133076X/133133XCF ležaj
76.2 136.525 33.25 5300 1.62 133076X/133136XCF ležaj
77.788 120 24.6 5500 1.55 123077X/123120CF ležaj
77.788 120.65 24.6 5500 1.55 123077X/123120XCF ležaj
77.788 121.444 24.6 5500 1.55 123077X/123121XCF ležaj
77.788 123.825 24.6 5500 1.55 123077X/123123XCF ležaj
80 140 36.5 4900 2.14 140080/140140CF ležaj
80.962 133.35 30.16 4900 1.73 126080X/126133XCF ležaj
82.55 133.35 30.16 4900 1.73 126082X/126133XCF ležaj
82.55 136.525 30.16 4900 1.73 126082X/126136XCF ležaj

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
82.55 140 36.5 4900 2.04 140082X/140140CF ležaj
84.138 133.35 30.16 4900 1.65 126084X/126133XCF ležaj
84.138 136.525 30.16 4900 1.65 126084X/126136XCF ležaj
85 140 36.5 4900 1.94 140085/140140CF Ležaj
85 170 45.5 4200 3.95 210085/210170CF Ležaj
85.725 133.35 30.16 4900 1.6 126085X/126133XCF ležaj
85.725 136.525 30.16 4900 1.6 126085X/126136XCF ležaj
88.9 133.35 30.16 4900 1.5 126088X/126133XCF ležaj
88.9 136.525 30.16 4900 1.5 126088X/126136XCF ležaj
90 133.35 30.16 4800 1.85 117090/117133XCF ležaj
90 150 35 4400 2.29 131090/131150CF Ležaj
90 152.4 35 4400 2.29 131090/131152XCF ležaj
90 152.4 38.1 4300 2.4 160090/160152XCF ležaj
90 158.75 35 4400 2.29 131090/131158XCF ležaj
90 158.75 38.1 4300 2.4 160090/160158XCF ležaj
90 160 38.1 4300 2.4 160090/160160CF ležaj
90 161.925 38.1 4300 2.4 160090/160161XCF ležaj
90 170 45.5 4200 3.95 210090/210170CF Ležaj
92.075 150 35 4400 2.29 131092X/131150CF ležaj
92.075 152.4 35 4400 2.29 131092X/131152XCF ležaj
92.075 158.75 35 4400 2.29 131092X/131158XCF ležaj
93.663 150 35 4400 2.29 131093X/131150CF ležaj
93.663 152.4 35 4400 2.29 131093X/131152XCF ležaj
93.663 158.75 35 4400 2.29 131093X/131158XCF ležaj
95 150 35 4400 2.29 131095/131150CF Ležaj
95 152.4 35 4400 2.14 131095/131152XCF ležaj
95 158.75 35 4400 2.29 131095/131158XCF ležaj
95 170 45.5 4200 3.95 210095/210170CF Ležaj
97 150 35 4400 2.29 131097/131150CF Ležaj
97 152.4 35 4400 2.06 131097/131152XCF ležaj

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
97 158.75 35 4400 2.29 131097/131158XCF ležaj
98.425 152.4 38.1 4300 2.4 160098X/160152XCF ležaj
98.425 158.75 38.1 4300 2.4 160098X/160158XCF ležaj
98.425 160 38.1 4300 2.4 160098X/160160CF ležaj
98.425 161.925 38.1 4300 2.4 160098X/160161XCF ležaj
100 170 47.63 3900 5.02 180100/180170CF ležaj
100 180 47.62 3900 4.625 180100/180180CF ležaj
100 180.975 47.63 3900 5.02 180100/180180XCF ležaj
100 190 47.62 3900 5.02 180100/180190CF ležaj
101.6 165.1 36.52 3900 4.15 141101X/141165XCF ležaj
101.6 170 47.63 3900 5.02 180101X/180170CF ležaj
101.6 180 47.63 3900 5.02 180101X/180180CF ležaj
101.6 180.975 47.62 3900 4.67 180101X/180180XCF ležaj
101.6 190 47.62 3900 5 180101X/180190CF ležaj
105 170 47.63 3900 5.02 180105/180170CF ležaj
105 180 47.63 3900 5.02 180105/180180CF ležaj
105 180.975 47.62 3900 4.44 180105/180180XCF ležaj
105 190 47.62 3900 4.77 180105/180190CF ležaj
107.95 165.1 36.52 3900 4.15 141107X/141165XCF ležaj
111.125 180.975 47.62 3600 4.08 181111X/181180XCF ležaj
111.125 190 47.62 3600 4.78 181111X/181190CF ležaj
111.125 190.5 47.62 3600 4.85 181111X/181190XCF ležaj
111.125 200.025 47.63 3600 4.08 181111X/181200XCF ležaj
115 165 28 3900 1.625 105115/105165CF Ležaj
115 180.975 47.62 3600 3.83 181115/181180XCF ležaj
115 190 47.62 3600 4.53 181115/181190CF Ležaj
115 190.5 47.62 3600 4.595 181115/181190XCF ležaj
115 200.025 47.63 3600 4.08 181115/181200XCF ležaj
118 180.975 47.62 3600 3.62 181118/181180XCF ležaj
118 190 47.62 3600 4.23 181118/181190CF ležaj

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
118 190.5 47.62 3600 4.29 181118/181190XCF ležaj
118 200.025 47.63 3600 4.08 181118/181200XCF ležaj
120 165 28 3900 1.625 105120/105165CF ležaj
120 190 47.62 3500 4.22 184120/184190CF ležaj
120 190.5 47.63 3500 4.22 184120/184190XCF ležaj
120 199 47.63 3500 4.22 184120/184199CF ležaj
120 200 47.63 3500 4.22 184120/184200CF ležaj
127 196.85 37.93 3400 3.9 164127X/164196XCF ležaj
127 200.025 37.93 3400 3.9 164127X/164200XCF ležaj
127 215 47.63 3100 6.055 200127X/200215CF ležaj
127 215.9 47.62 3100 6.58 200127X/200215XCF ležaj
133.35 196.85 37.93 3400 3.9 164133X/164196XCF ležaj
133.35 200.025 37.93 3400 3.9 164133X/164200XCF ležaj
133.35 215 47.63 3100 6.055 200133X/200215CF ležaj
133.35 215.9 47.62 3100 6.055 200133X/200215XCF ležaj
136.525 215 47.63 3100 6.055 200136X/200215CF ležaj
136.525 215.9 47.62 3100 5.795 200136X/200215XCF ležaj
139.7 215 47.63 3100 6.055 200139X/200215CF ležaj
139.7 215.9 47.63 3100 6.055 200139X/200215XCF ležaj
139.7 241.3 57.15 2900 10.05 240139X/240241XCF ležaj
140 200 38.15 3100 4.05 161140/161200CF ležaj
140 200.025 38.15 3100 4.05 161140/161200XCF ležaj
142.875 200 38.15 3100 4.05 161142X/161200CF ležaj
142.875 200.025 38.15 3100 4.05 161142X/161200XCF ležaj
145 241.3 57.15 2900 9.51 240145/240241XCF ležaj
145 256 47.63 2700 7.01 203145/203256CF ležaj
149.225 241.3 57.15 2900 9.51 240149X/240241XCF ležaj
150 210 38 3000 4.78 163150/163210CF Ležaj
152.4 222.25 46.82 3000 5.31 183152X/183222XCF ležaj
152.4 254 66.67 2600 12.13 281152X/281254XCF ležaj

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
152.4 266.7 66.67 2600 12.13 281152X/281266XCF ležaj
155.575 254 66.67 2600 12.13 281155X/281254XCF ležaj
155.575 266.7 66.67 2600 12.13 281155X/281266XCF ležaj
156 235 47.62 2700 7.01 203156/203235CF ležaj
165.1 254 46.03 2600 7.35 186165X/186254XCF ležaj
170 254 46.03 2600 7.35 186170/186254XCF ležaj
177.8 227.013 30.16 2700 2.75 115177X/115227XCF ležaj
177.8 254 46.03 2600 7.35 186177X/186254XCF ležaj
177.8 288.925 63.5 2300 15 280177X/280288XCF ležaj
185 258 46 2500 5.4 187185/187258CF ležaj
190 266.7 47.62 2400 7.2 204190/204266XCF ležaj
190.5 266.7 47.62 2400 7.2 204190X/204266XCF ležaj
190.5 282.575 50.8 2300 9.35 242190X/242282XCF ležaj
190.5 290 47 2200 9.1 206190X/206290CF ležaj
203.2 310 63.5 2100 15.9 283203X/283310CF ležaj
203.2 317.5 63.5 2100 17.34 283203X/283317XCF ležaj
210 290 47 2200 9.1 206210/206290CF ležaj
210 310 63.5 2100 14.6 283210/283310CF Ležaj
210 317.5 63.5 2100 16.04 283210/283317XCF ležaj
215.9 355.6 68.26 1900 22.9 284215X/284355XCF ležaj
228.6 355.6 68.26 1900 22.9 284228X/284355XCF ležaj
230 327.025 52.4 1900 11.9 244230/244327XCF ležaj
230 330 52.4 1900 13 244230/244330CF Ležaj
234.95 327.025 52.4 1900 11.1 244234X/244327XCF ležaj
234.95 330 52.4 1900 12.1 244234X/244330CF ležaj
234.95 355.6 68.26 1900 21.66 284234X/284355XCF ležaj
254 400.05 57.15 1700 24.86 382254X/382400XCF ležaj
275 406.4 78 1600 32.54 320275/320406XCF ležaj
280.194 406.4 78 1600 31.16 320280X/320406XCF ležaj
330.2 482.6 85.72 1400 50.5 380330X/380482XCF ležaj

Osnovne dimenzije Osnovna nosivost Ocjene brzine misa Model
dinamičan statičan Referentna brzina Ograničenje brzine ležaj br.
d [mm] D [mm] T [mm] C [kN] C0 [kN] [o/min] [o/min] [kg]
338.138 419.1 36.5 1500 14.4 152338X/152419XF Ležaj
355.6 482.6 60.32 1400 26.2 282355X/282482XCF ležaj
0.371475 508 80 1300 45 303371X/303508XCSF ležaj
381 508 80 1300 38 303381X/303508XCF ležaj
396.875 549.275 85 1200 56 323396XS/323549XCF Ležaj
406.4 549.275 85 1200 47.97 323406XS/323549XCF Ležaj
431.8 533.4 50.8 1200 20.8 232431X/232533XCF ležaj
457.2 596.9 80 1100 46 300457X/300596XCF ležaj
506 636 80 1000 56 307506/307636CF Ležaj
[#unos#]

Preporučeni proizvodi

Inženjerstvo budućnosti kretanja
O UKL-u
Founded in 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) is China Inch tapered roller bearings suppliers and OEM/ODM 30202 single row tapered roller bearing company, an integrated industrial and trading enterprise that focuses on precision manufacturing, combining R&D, production, and sales.
The company specializes in high-performance bearing solutions, providing technical support for global industries with exceptionally high demands for precision and reliability.

With more than 200 skilled professionals and a fully modernized production base, UKL’s facilities cover the entire manufacturing process — forging, annealing, turning, heat treatment, grinding, and automated assembly.
Leveraging over 15 years of OEM/ODM export experience, UKL responds quickly to customer needs, offering flexible and customized services for clients across Europe, Asia, Africa, and the Middle East.

Ukl Bearing Manufacturing Co.,Ltd Više o nama Ukl Bearing Manufacturing Co.,Ltd
  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    godina

    Iskustvo u industriji

  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    Raznolikost modela

  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    Broj zaposlenih

  • Ukl Bearing Manufacturing Co.,Ltd

    0

    $

    Godišnja vrijednost izvoza

Ukl Bearing Manufacturing Co.,Ltd
Certificate Of Honor
Vijesti
Konusni valjkasti ležajevi Industry knowledge
